Luxman L-507Z Integrated Amplifier

Luxman L-507Z Integrated Amplifier

The Luxman L-507Z Integrated Amplifier is available for demonstration in our Hull store by request.

Discover the Luxman L-507Z Integrated Amplifier: An In-Depth Review

Design and Power

The Luxman L-507Z integrated amplifier replaces both the L-590AX-II and L-507UX-II. It represents the next leap in the rich history of Luxman, featuring a brand-new amplification feedback system called LIFES, opening the door to a new horizon in high-end amplification. With 110 watts per channel into 8 ohms, this amplifier has enough power to drive even the most demanding of loudspeakers.

Innovative Technology

The L-507Z introduces the LIFES (Luxman Integrated Feedback Engine System), a new amplification feedback engine built upon Luxman’s renowned ODNF (Only Distortion Negative Feedback) circuitry. This design minimizes distortion while delivering a natural, responsive sound. The amplifier features a 3-stage Darlington triple paralleled push-pull configuration, capable of 110W+110W (at 8 ohm) and 210W+210W (at 4 ohm), ensuring exceptional performance and control.

Luxman Styling and Features

The L-507Z boasts a stylish white and aluminum finish, reflecting Luxman’s iconic design aesthetic. It includes a large VU meter for precise monitoring and an updated headphone output with a 4.4mm jack in addition to the traditional 6.3mm, catering to audiophiles seeking a three-dimensional listening experience. The amplifier’s thoughtful design ensures seamless integration into any high-end audio system.

Specifications

The Luxman L-507Z offers impressive technical specifications to support its exceptional performance:

• Rated output: 110W + 110W (8Ω), 210W + 210W (4Ω)
• Phono input sensitivity (MM/MC): 2.5mV/47kΩ, 0.3mV/100Ω
• Line input sensitivity: 180mV/47kΩ
• Total harmonic distortion (THD): Less than 0.005% (1kHz), 0.02% (20Hz-20kHz)
• Frequency response: 20Hz to 100kHz (-3dB)
• Signal-to-noise ratio (S/N): 107dB (line)

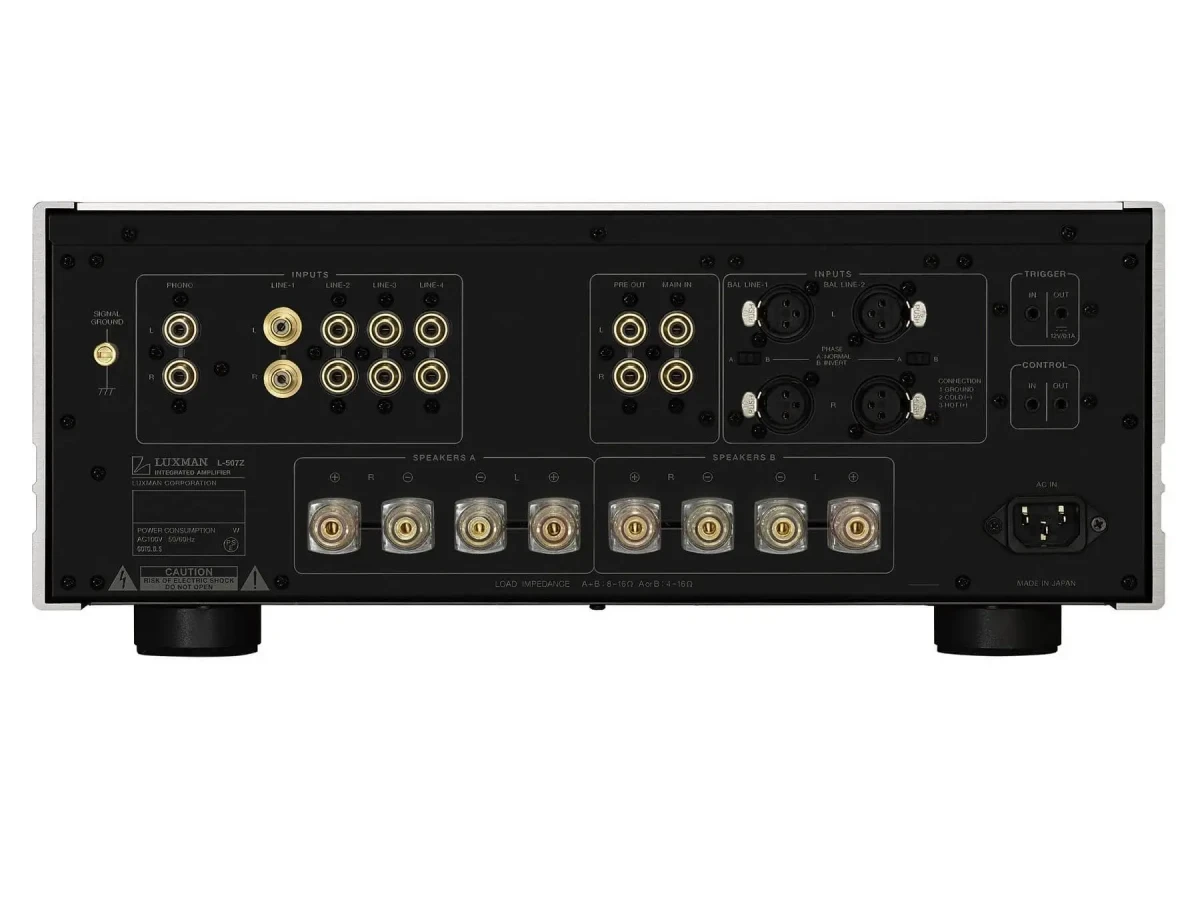

• Inputs: 4x Line, 2x Balanced, Tape, Power Amp
• Outputs: Pre-Amp, Tape, Headphones
• Speaker Outputs: A/B switchable (A+B)
• Dimensions: 440 x 193 x 463 mm (WxHxD)
• Weight: 28.4 kg
