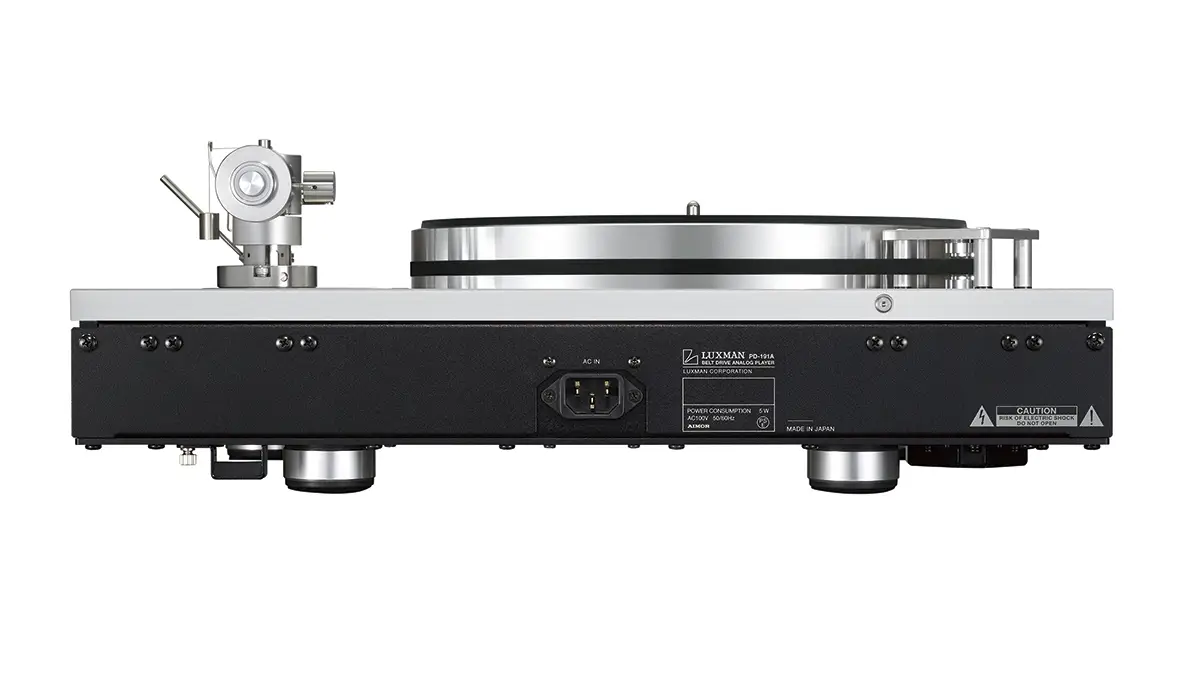

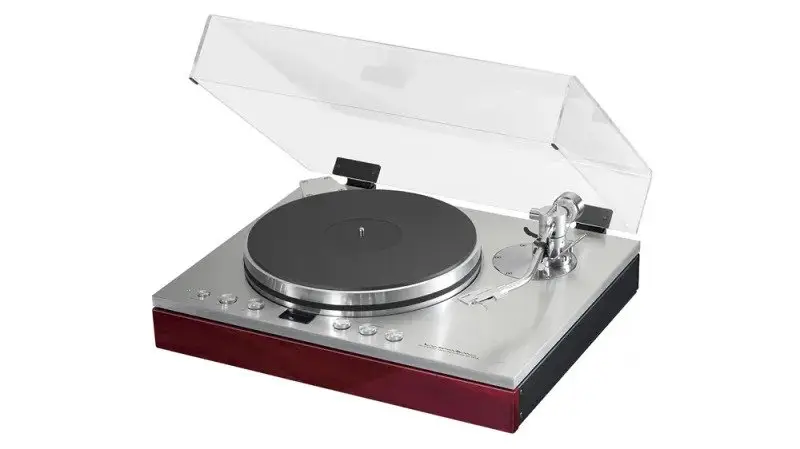

Luxman PD-191A Turntable

Luxman PD-191A Turntable

Introducing the Luxman PD-191A Turntable. A centerpiece product of Luxman's range, this turntable is guaranteed to be pivotal in your audio setup. The PD-191A features a completely new SAEC tonearm design, meticulously engineered with a knife edge bearing, providing high initial movement sensitivity for better tracking as well as a headshell included with the turntable.

Luxman PD-191A Turntable Review

LTA-710 Precision Tonearm

Developed in collaboration with SAEC, the LTA-710 tonearm employs a knife-edge bearing system for exceptional sensitivity and precise tracking.

With a 10-inch effective length, it minimises tracking errors and resists surface vibrations, ensuring superb vinyl playback.

Fully adjustable for stylus pressure, anti-skating, and height, it supports cartridges weighing between 4–11g, catering to a variety of configurations.

High-Torque Drive System

Powered by a brushless DC motor with PID control, the PD-191A achieves ultra-stable platter rotation.

The sine wave PWM/PID speed control ensures precision, aided by a MEMS oscillator for consistent performance.

Supports three speeds: 33 1/3, 45, and 78 RPM, each with a ±6% adjustment range for added flexibility.

Advanced Platter and Bearings

The 5.2kg aluminium platter, machined from a solid billet, offers high inertia (0.7t·cm²) for smooth, stable rotation.

A PEEK thrust bearing and brass radial bearing lubricated with organic molybdenum oil provide durability and long-term performance.

Optimised Chassis and Suspension

The underslung suspension system, combined with a 15mm aluminium top plate, minimises vibration and enhances rigidity.

Motor and transformer vibrations are isolated by a metal baseplate and damping materials.

Four height-adjustable feet with damping rubber ensure stability and resist external interference.

Sophisticated Design

A luxurious rosewood-stained front panel complements the sleek aluminium top plate for a timeless aesthetic.

The turntable’s profile is 12mm lower than the PD-171A, giving it a refined and contemporary look.

Additional Features

Equipped with a reflected LED stroboscope for easy speed monitoring and fine-tuning.

Features interchangeable tonearm bases, accommodating third-party options, including a 12-inch base for SME 3012 tonearms.

Includes an optional 4mm acrylic dust cover to protect the turntable.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Luxman PD-191A Turntable. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Luxman PD-191A more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Luxman PD-191A, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Luxman PD-191A Turntable Specifications:

• Drive system: Belt drive system
• Motor: Brushless DC motor with PID control
• Material: Machined aluminum, Surface finish: Diamond cut
• Revolution: 33 1/3rpm, 45rpm, 78rpm (3 speeds selectable)
• Revolution adjustment range: ±6% (each rotation speed adjustable independently)
• Wow and flutter: 0.04% or less (W.R.M.S.)
• Weight: 5.2kg (Platter)
• Type: Static balanced, S shaped, universal type
• Bearing: Concealed vertical knife edge
• Effective length: 256mm
• Overhang: 16mm
• Tracking error angle: +1.07° to -1.52°
• Applicable cartridge weight: 4 to 11g (including headshell 17 to 24g)
• Adjustable height range: 22mm
• Anti-skating: 0 to 4g
• Power source: 230V～50Hz / 115V～60Hz
• Power consumption: 5W
• Dimensions: 491(W) × 128(to the upper surface of the platter) (H)× 399(D) mm
• Net weight: 24.8kg (main unit), 26.4kg (with dust cover)
• Accessories: Platter, Headshell (D.U.C.C lead wire included), Rubber mat, Rubber belt, Platter mount handle (2 pieces), EP adaptor, Counterweight, Anti-skating weight, Arm adjustment hex wrench set (2 types), Flathead screwdriver for rotation speed adjustment, Arm base removal hex wrench, Phono cable (DIN→ RCA : already installed in the unit), Power cable
