Quad Platina Integrated Amplifier

Quad Platina Integrated Amplifier

The Quad Platina Integrated Amplifier represents a bold evolution of QUAD’s legendary craftsmanship. Designed for the modern audiophile, it blends iconic British engineering with a sleek, minimalist aesthetic. Every element—from the machined aluminium chassis to the refined tactile controls—embodies timeless sophistication and sonic purity.

Built to deliver reference-grade performance, the Platina Integrated Amplifier offers exceptional power, finesse, and balance. It redefines what an integrated amplifier can achieve, both technically and artistically.

Power by Design

At the heart of the Quad Platina Integrated Amplifier lies a dual mono Class AB amplifier capable of delivering 200W per channel into 8Ω (and 300W into 4Ω). This design ensures massive dynamic range and effortless authority, capable of driving even the most demanding loudspeakers with precision and composure.

Engineered through a rigorous five-year R&D process, QUAD’s design team meticulously hand-selected every component for sonic integrity. The amplifier’s custom 630VA toroidal transformer, 44,000uF per channel filter capacity, and Wurth Elektronik bespoke capacitors form the backbone of its muscular yet refined sound signature.

The result: deep, articulate bass; pristine midrange detail; and smooth, open highs that capture every nuance of the performance.

Advanced Digital Architecture

The Quad Platina Integrated Amplifier is a fully modern integrated solution featuring a state-of-the-art ES9038 PRO DAC. Supporting PCM up to 768kHz and DSD512, it ensures ultra-low jitter and unmatched transparency across all digital sources.

Listeners can upsample lower-resolution files to 352.8kHz or 384kHz, unlocking new depth and clarity from legacy or compressed recordings. Five user-selectable DAC filter settings allow for fine-tuning of tonal characteristics—tailoring the sound to your system and listening preferences.

Roon Tested for Seamless Streaming

Fully Roon Tested, the Platina Integrated Amplifier guarantees flawless integration with the Roon ecosystem, ensuring high-resolution playback and consistent performance across devices. QUAD’s direct partnership with Roon ensures optimal usability and long-term support.

Precision Analogue Design

For analogue enthusiasts, the Quad Platina Integrated Amplifier delivers a versatile input section with two RCA pairs, balanced XLRs, and a dedicated MM/MC phono stage. Its JFET-based design offers selectable gain (46dB, 52dB, 60dB) and input impedance options for perfect cartridge matching.

The phono stage’s ultra-low noise floor makes it ideal for moving coil (MC) cartridges, revealing microdetail and tonal warmth from vinyl playback rarely matched in this class.

Connectivity and Usability

With HDMI ARC, PC USB, optical, SPDIF, and balanced/unbalanced outputs, the Platina Integrated Amplifier seamlessly integrates into both audiophile and home theatre setups. Its intuitive full-colour TFT display and expertly designed GUI make navigation effortless—whether adjusting DAC filters, phono settings, or system configuration.

A refined aluminium remote control extends full functionality across the entire Platina series.

High-Performance Headphone Amplification

For private listening, the built-in current-feedback headphone amplifier delivers an expansive soundstage with ultra-fast transient response. Expect crystalline highs, powerful midrange articulation, and deep, controlled bass that brings headphones to life with breathtaking realism.

Built for Sonic Purity

Every circuit in the Quad Platina Integrated Amplifier uses precision SMD layout for ultra-short signal paths, minimizing parasitic inductance, noise, and thermal imbalance. This results in lower distortion, improved frequency response, and long-term reliability—hallmarks of QUAD’s engineering philosophy.

Power and Control

The Quad Platina Integrated Amplifier offers effortless control and immense drive, ensuring your loudspeakers perform at their absolute best. The powerful dual mono design brings dynamic authority with exceptional detail.

Digital Precision

With the ES9038 PRO DAC at its heart, the Platina Integrated achieves lifelike realism and dimensional accuracy. Whether streaming or using physical media, it reveals nuances other amplifiers often miss.

Analogue Versatility

From vinyl playback to balanced line inputs, every analogue path in the Quad Platina Integrated Amplifier is optimised for purity and transparency. The JFET-based phono stage ensures quiet operation and rich musicality.

User Experience

The intuitive GUI, tactile aluminium controls, and clear TFT display make the Platina both elegant and easy to use. Every interaction feels precise, premium, and rewarding.

Integration

With HDMI ARC, USB, optical, and SPDIF inputs, the Quad Platina Integrated Amplifier fits effortlessly into any high-end setup, bridging classic hi-fi and modern streaming systems.

Quad Platina Integrated Amplifier Specification:

• Design Philosophy & Core Technology
  • Class AB Dual Mono Design
  • 2 x 200W (8 ohm) / 2x300W (4 ohm)
  • ES9038Pro 32-bit DAC
  • Highly Linear Analogue Volume Control
  • Dedicated High-performance Low Noise MM/MC Phono Stage (Selectable gain 46/52/60dB)
  • Dedicated Current-Feedback Headphone Amplifier
  • Roon Tested
• Power Amplifier Section
  • Rated Power Output: 2 x 200W (8 ohm, THD <1%)
  • Rated Power Output: 2 x 310W (4 ohm, THD <1%)
  • Total Harmonic Distortion (THD): <0.0008% (1kHz @100W/8Ω)
  • Signal-to-Noise Ratio (S/N): >112dB (A-weighted)
  • Frequency Response: 20Hz – 20kHz (+/-0.3dB)
  • Gain: +30dB
  • Input Sensitivity: 1.2Vrms
  • Max Output Current: 20A
• DAC (Digital-to-Analogue Conversion)
  • D/A Converter: ES9038Pro
  • Max Sampling Frequency:
    • Optical/Coaxial: 192kHz
    • PC USB: PCM 768kHz, DSD512
  • Total Harmonic Distortion (THD): <0.001% (1kHz @0dBFS)
  • Signal-to-Noise Ratio (S/N): >116dB (A-weighted)
  • Output Level (0dBFS, 1kHz): 2.0Vrms
• Preamplifier Section
  • Gain: 0dB (Line) +46 / +52 / +60dB (Phono Adjustable)
  • Input Sensitivity:
    • 1.2Vrms (Line Volume = 0dB)
    • 2.4Vrms (XLR Volume = 0dB)
    • 5mV (Phono MM, Gain = 46dB, Volume = 0dB)
    • 1mV (Phono MC, Gain = 60dB, Volume = 0dB)
  • Input Impedance:
    • 50K (Line)
    • 50K // 100pF (Phono MM)
    • 360Ω // 200pF (Phono MC)
  • Total Harmonic Distortion (THD): <0.0004% (1kHz @2V, Volume = 0dB)
  • Frequency Response: 20Hz – 20kHz (+/-0.1dB)
  • Output Impedance: 120Ω
  • Signal-to-Noise Ratio:
    • >110dB (Line & XLR, A-weighted)
    • >78dB (Phono MM, A-weighted)
    • >70dB (Phono MC, A-weighted)
• Headphone Amplifier
  • Design: Current-Feedback
  • Total Harmonic Distortion (THD): <0.01% (1kHz, 50mW)
  • Output Impedance: 2.35Ω
  • Load Impedance: 20–600Ω

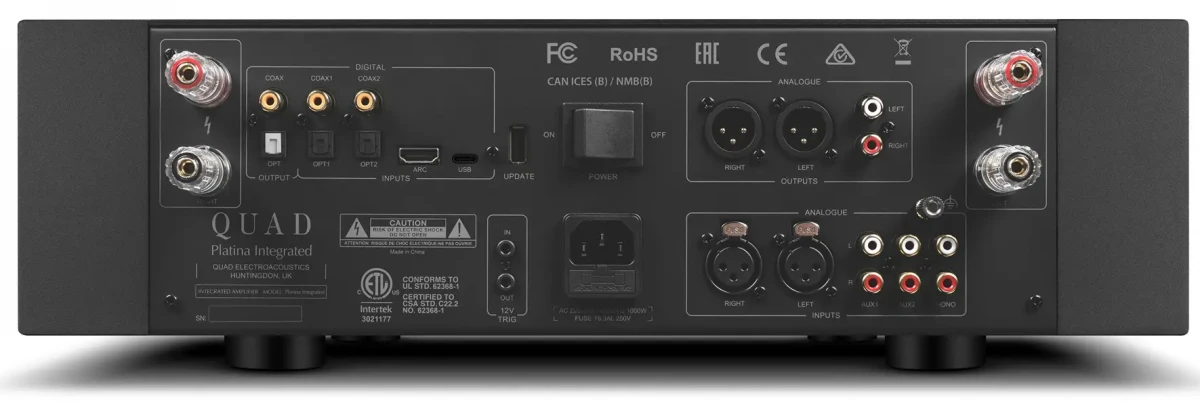

• Inputs
  • 2 x Analogue (RCA)
  • 1 x Balanced XLR
  • 1 x Phono (MM/MC)
  • 2 x SPDIF (Coaxial)
  • 2 x SPDIF (Optical)
  • 1 x PC USB (Type-C)
  • 1 x HDMI ARC
  • 1 x 12V Trigger
• Outputs
  • 1 x RCA (pair)
  • 1 x XLR (pair)
  • 1 x Stereo Speaker Binding Post (pair)
  • 1 x Optical
  • 1 x Coaxial
  • 1 x 12V Trigger
• Sampling Frequency Support
  • Optical / Coaxial: 44.1kHz – 192kHz
  • PC USB: 44.1kHz – 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
• Display & Interface
  • 4.3" 800 x 480 Full View IPS LCD
  • Support USB Upgrade
• General / Physical
  • Standby Power Consumption: <0.5W
  • Net Weight: 17.1kg
  • Gross Weight: 19.3kg
  • Dimensions (W x H x D): 445 x 134.5 x 348mm
  • Carton Size (W x H x D): 500 x 225 x 450mm
  • Finish: Black / Silver
  • Power Requirements (region dependent):
    • 220–240V ~ 50/60Hz
    • 100–120V ~ 50/60Hz
  • Standard Accessories: Power Cord, Remote Control, User Manual
• Model & General Description
  • Model: Platina Integrated
  • General Description: Integrated Amplifier
