The ProJect Phono Box DS3 B Phono Stage is available for demonstration in our Hull store by request.

The Phono Box DS3 B is a dual-mono, fully discrete moving magnet and moving coil phono stage with balanced inputs and outputs. With a host of customisable features, it offers exceptional value for money and brings a notable upgrade to any mid-/high-end analogue hi-fi system.

The Pro-Ject design team took the decision to employ discrete circuitry in the Phono Box DS3 B. Discrete circuits involve no operational amplifiers (op-amps), and the result is a more neutral, natural, dynamic, and vivid sound. They are more complicated to put together and involve a greater variety of components, but the result when utilised in a well-organised electrical layout is a true high-end sound.

This philosophy for the best possible performance carries through to the variety of conveniently-placed features the Phono Box DS3 B has on offer. The phono stage can be connected to two turntables at the same time, and each input will save its previous settings in memory so the Impedance, Capacitance (for MM cartridges) and Gain will all be set as you switch between turntables. For MC cartridges, the continuously adjustable load-impedance dial on the front panel allows you to perfectly set the impedance to suit your cartridge and your ears.

As the Phono Box DS3 B is equipped with both balanced inputs and outputs, it is also part of Pro-Ject’s True Balanced Connections concept. By connecting to a turntable with a moving coil cartridge and using one of Pro-Ject’s balanced connection cables, your analogue system can benefit from increased dynamics, less noise and improved signal-to-noise ratios. Going true balanced is like hearing parts of your music that were not there before.

Elsewhere in the Phono Box DS3 B design, the fully-passive and discrete RIAA equalisation stage is optimised for absolute accuracy and signal integrity. Depending on the outputs you are using, this stage is then either directly fed to a fully discrete output stage (when using RCA outputs) or is connected to a fully discrete balancing stage for onward balanced connections.

The Phono Box DS3 B is finished in a steel chassis, covered by silver or black aluminium panels, for extreme rigidity and good electrical isolation. The neat minimalist aesthetic can be further enhanced by the addition of retro-inspired, magnetically installed wooden side panels (available separately). It also features an external power adapter, to keep the sensitive internal signals free from any interferences.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the ProJect Phono Box DS3 B Phono Stage. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the ProJect Phono Box DS3 B more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the ProJect Phono Box DS3 B Phono Stage, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

ProJect Phono Box DS3 B Phono Stage Specification:

• Input impedance: Stepless 10 – 1000 ohms or fix 47kOhms
• Input capacitance: 50, 150, 300, 400pF
• Gain (+ 6dB using XLR Out): 40, 45, 50, 55, 60, 65 dB
• SNR MM (40dB): 104dBV, 111dBV - ‚A‘ weighted
• SNR MC (60dB): 85dBV, 91dBV - ‚A‘ weighted
• THD at 1 kHz: <0,001% MM, < 0,004% MC
• THD (20Hz-20kHz): <0,005% MM, < 0,01% MC
• RIAA-equalization curve accuracy: < 0,25dB / 20Hz - 20kHz
• Subsonic filter: 20Hz with 18dB/octave

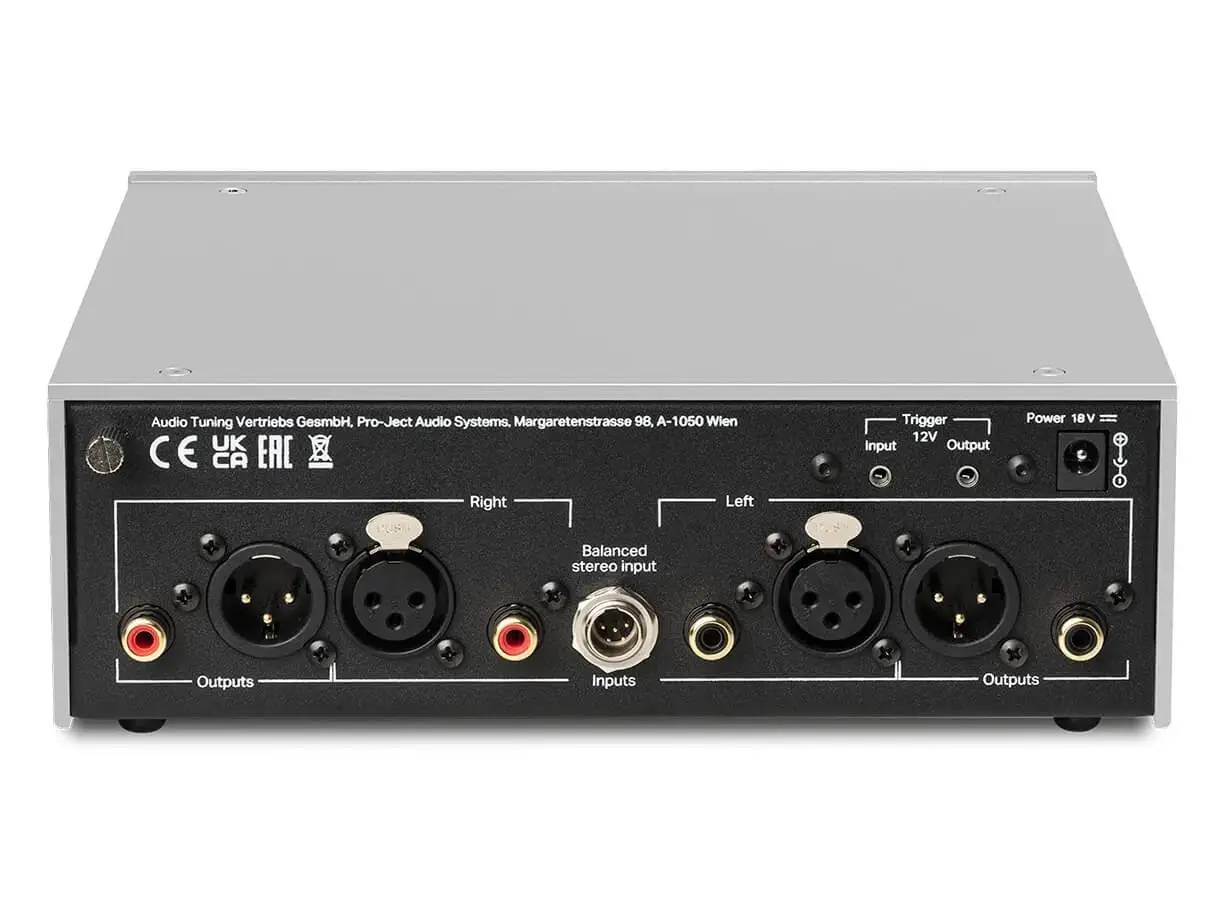

• Input: 1x 5-pin mini XLR / 1x pair XLR / 1x pair RCA phono
• Line-level output: 1x pair RCA, 1x pair XLR
• Wiring XLR sockets: 1 ground, 2 “hot” and 3 “cold”
• Trigger In/Out: 12V on/off detector
• Outboard power supply: 18V/500mA DC
• Power consumption: 18V/max.290mA DC, <0.5 W standby
• Dimensions: 206 x 72 x 194 (205 with sockets) mm
• Weight: 480g without power supply
