Martin Logan Illusion ESL C34A Centre Speaker

Martin Logan Illusion ESL C34A Centre Speaker

The Martin Logan Illusion ESL C34A Centre Speaker is available for demonstration in our Hull store by request.

The Illusion ESL C34A complements the impressive Renaissance ESL 15A, Expression ESL 13A, Impression ESL 11A, and Classic ESL 9 loudspeakers.

The Martin Logan Illusion ESL C34A Centre Speaker has multiple drivers: two 16” x 8” (W x H) ESL panels, two folded motion XT tweeters, and four 6.5” Powered Force Forward™ woofers featuring a 24-bit Vojtko™ DSP Engine, and a Class D 250W amplifier.

By doubling the size of the ESL panel and the number of folded motion tweeters and dynamic woofer, the Illusion ESL 34A Centre Speaker offers a greater performance than the smaller Martin Logan centre speakers.

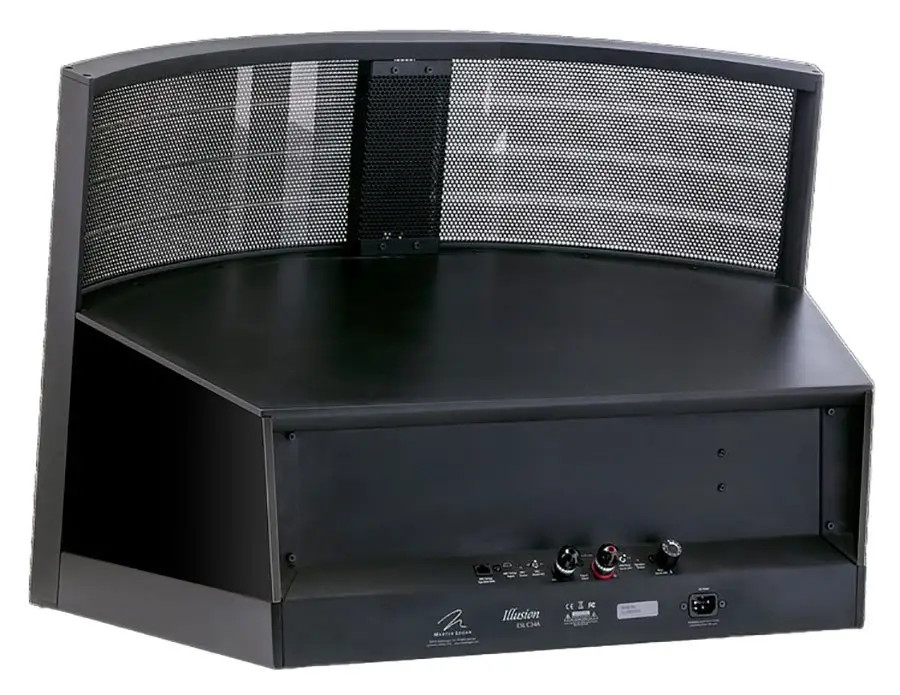

The rear panel has an RJ-45 Ethernet style connection, a mini-USB port for installing the Anthem Room Correction (ARC software), a light displaying ARC status (red/green), an on/off switch for ARC, WBT speaker terminals, a switch for mid-bass level (-2 dB, 0 dB, +2 dB), a speaker status light (red/green), a bass control knob (+ 10 dB below 75 Hz), and power cord receptacle.

The Martin Logan Illusion ESL C34A Centre Speaker is intended for floor placement, but can perform on dedicated centre stands.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Martin Logan Illusion ESL C34A Centre Speaker. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Martin Logan Illusion ESL C34A more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Martin Logan Illusion ESL C34A Centre Speaker, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Martin Logan Illusion ESL C34A Centre Speaker Specification:

• Frequency Response: 45-23000 Hz + 3 dB
• Horizontal Dispersion: 30°
• High Frequency Transducer: Two 1.25” x 2.4” (W x H) Folded Motion XT with 4.5” x 2.75” diaphragm
• Mid Frequency Transducer: Patented CLS™ XStat™ electrostatic transducer
• Panel Dimensions (total): 8″ × 34.5″ (H x W)
• Low Frequency Transducer: Four 6.5″ (16.5cm) cast basket, high excursion, rigid aluminum cone, extended throw drive assembly
• Room Correction: Anthem Room Correction (sold separately)
• Amplifier: 250 watt/channel (4 Ohms)
• Sensitivity: 90 dB (2.83 volts/meter)
• Impedance: 6 Ohms
• Recommended Amplifier Power: 20-600 watts/channel
• Crossover Frequency: 500, 2000 Hz
• Audio Controls Bass: + 10dB under 75 Hz, Mid-Bass: -2dB, 0dB, +2dB, ARC Room EQ: On, Off
• Inputs: AC Power, RJ45 for (ARC), mini USB (for ARC)
• Power Draw: Max: 300 watts/channel; Standby <1Watt/channel
• Weight: 40kg
• Dimensions (W x H x D): 32.35″ x 23.1″ x 23.75″ (32 cm x 84 cm x 84 cm)
