Luxman M-10X power amplifier

Luxman M-10X Power Amplifier

The Luxman M-10X power amplifier is available for demonstration in our Hull store by request.

Luxman M-10X Power Amplifier Review

On offer we have our Ex -Display luxman preamplifier available for £12995, a saving of £3000 For more information about this offer call us on 01482 223096 or email shop@fanthorpes.co.uk

The Luxman M-10X power amplifier flagship model replaces the M-900u and is the next step in the evolution of the flagship Luxman power amplifier series, representing what has gone before but with an eye to the future and Luxman’s 100th anniversary in 2025.

M-10X boasts an improved signal-to-noise ratio, reduced THD, and 150 Watts per channel into 8 ohms, making it well-suited to driving the majority of loudspeakers. For the ultimate in Luxman amplification, M-10X is the power amplifier you've been waiting for.

The M-10X brings to life a brand new amplification feedback engine called LIFES (Luxman Integrated Feedback Engine System), which builds upon nearly a century of experience in delivering quality sound for the most discerning listener.

Using their own epoch-making ODNF (Only Distortion Negative Feedback) circuitry as a base, the team at Luxman has designed what is arguably the end-game in systems. The M-10X features a three-phase Darlington circuitry as well as a quad-parallel push-pull system, which can achieve up to 1,200W (at 1 ohm).

The unit also features 100μm thick low-resistance tracing on a board level that ensures the longevity of the unit without any compromise on quality and power delivery—ensuring you get the absolute most out of your M-10X.

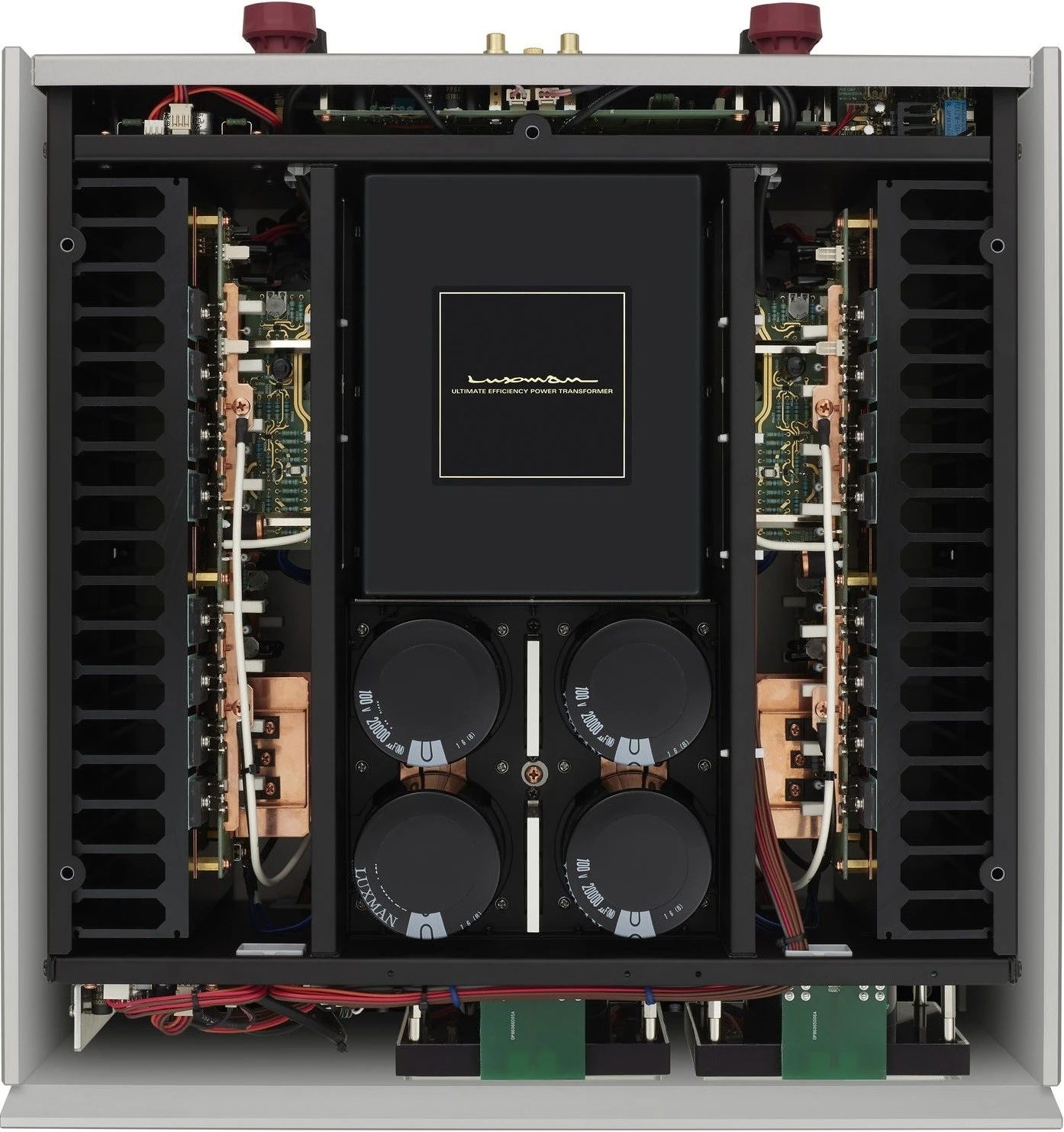

The Luxman M-10X is designed for the ultimate power delivery to your setup with original custom-designed components that allow the M-10X to stand alone, with new L&R independent 20,000μF x 4 capacitors that deliver an incredible amount of clarity to low-impedance transmissions, meaning every nuance of your sound system is allowed to truly shine to its fullest.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Luxman M-10X power amplifier. If you have any hifi that you wish to use as part payment, then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk, and we will give you a price to change. This is a fantastic and hassle-free way of making the Luxman M-10X more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Luxman M-10X power amplifier, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096, and we will email an application form to you.

Luxman M-10X Power Amplifier Specification

• Speaker terminal supported: Y-lug
• Max output: 2x 1200W/Str 2400W (1/2Ω)
• Sensitivity: 1.24V/150W (8Ω)
• Impedance: 34/51kΩ Balanced/Unbalanced
• Frequency response: 20-20kHz / 1-130kHz (–0.1/3dB)
• THD: <0.008% /0.1% (1kHz/20-20kHz, 8Ω)
• Signal-to-noise ratio (IHF-A): 117dB
• Amplification circuit: ODNF 4.0
• Configuration: 2 Bipolar 4-parallel push-pull
• Power transformer: EI type 1,250VA
• Damping factor: 710, Gain: 29.0dB
• Power consumption: 540W / 280W / 1W
• Dimensions (WHD): 440 x 224 x 485mm
• Net weight: 48.0kg
