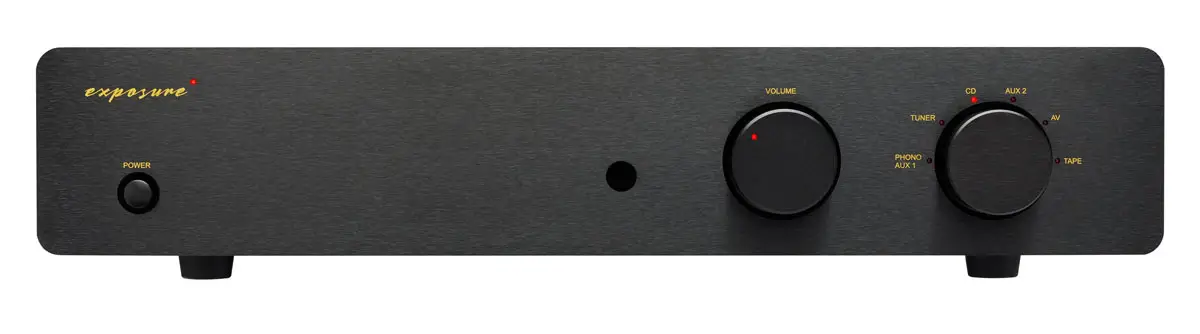

Exposure 5010 Pre Amplifier

Exposure 5010 Pre Amplifier

Designed for serious audiophiles, the Exposure 5010 Pre-Amplifier delivers uncompromising sound quality and versatility. Featuring a large custom toroidal power transformer and multiple smoothing capacitors, it ensures exceptional power stability. Enjoy flexibility with 6 line inputs (or 5 plus optional MM/MC phono stage or plug-in DAC), balanced and unbalanced outputs, and a tape output.

Precision-built with high-quality relays for input selection, discrete transistor Class A output buffers, and DC-coupled balanced preamp output, the 5010 offers clean, dynamic performance. Housed in a robust all-aluminium chassis and available in black or titanium, it also includes full remote control functionality and comes with a three-year guarantee.

Elevate your system with the flagship performance of Exposure.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the Exposure 5010 Pre Amplifier. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the Exposure 5010 Pre Amplifier more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the Exposure 5010 Pre Amplifier, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

Exposure 5010 Pre Amplifier Specification:

• Outputs

  • Gain (at 1kHz):

    • +9dB unbalanced output
    • +15dB balanced output

  • Sensitivity:

    • 500mV

  • Maximum Output:

    • 9V RMS unbalanced

  • Frequency Response:

    • -3dB at 1Hz and 57kHz, referenced to 1kHz, at max volume

  • Total Harmonic Distortion (THD):

    • <0.005% at 1.6V RMS output, 1kHz

  • Signal to Noise Ratio (SNR):

    • 98dB, A-weighted, referenced to 1.6V RMS output, 1kHz

  • Channel Separation:

    • 60dB from 20Hz to 20kHz (Typically >85dB at 1kHz)

  • Outputs:

    • 2 pairs RCA, pre-amp output, 1 pair for tape output

  Inputs

  • Input Impedance:
    • 18K Ohms minimum

  General

  • Mains Supply:

    • 110/120V or 220/240V, 50/60Hz (factory set)

  • Fuse:

    • T5AL for 110/120V units
    • T2.5AL for 220/240V units

  • Power Consumption:

    • <25W

  • Dimensions (HxWxD):

    • 90mm x 440mm x 300mm

  • Net Weight:

    • 6kg

  • Gross Weight:

    • 8kg
