AVM Evolution PAS 5.3 Streaming Preamplifier

AVM Evolution PAS 5.3 Streaming Preamplifier

The  AVM PAS 5.3 Streaming Preamplifier boasts a unique Tube Line Stage, located in the preamplifier section. Specially crafted tubes for AVM were used to develop a new tube stage for the EVOLUTION series, maximizing the sonic allure of AVM tubes. With AVM's circuit technology, enjoy an extended tube life of approximately 20,000 hours.

The  AVM PAS 5.3 Streaming Preamplifier boasts a unique Tube Line Stage, located in the preamplifier section. Specially crafted tubes for AVM were used to develop a new tube stage for the EVOLUTION series, maximizing the sonic allure of AVM tubes. With AVM's circuit technology, enjoy an extended tube life of approximately 20,000 hours.

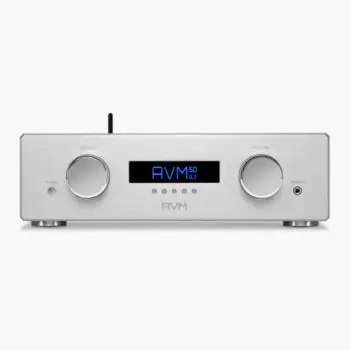

The AVM PAS 5.3 stands out with its glass pane housing cover, providing a captivating view of the tube stages in action.

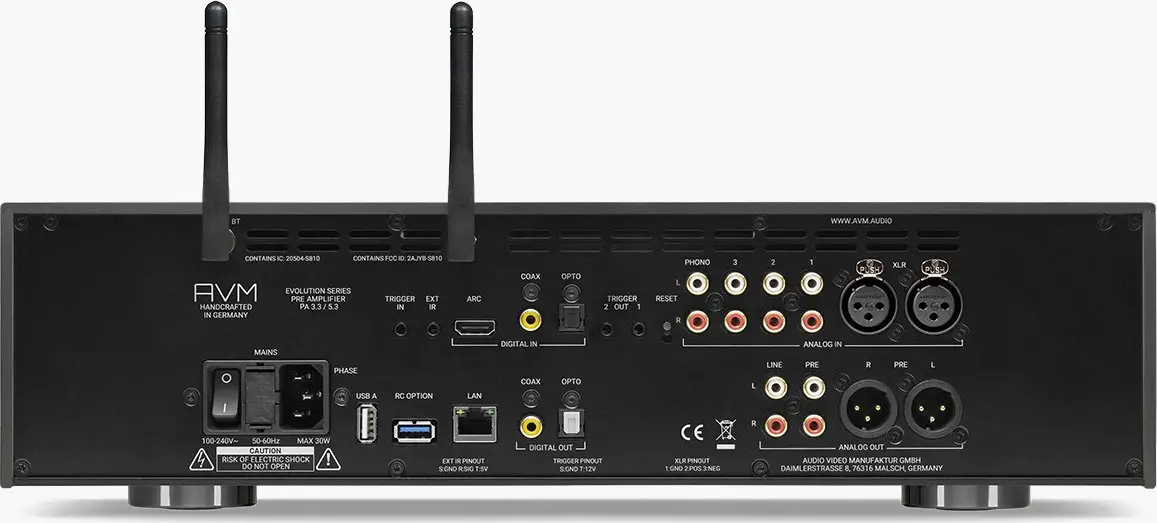

The AVM X-STREAM Engine® streams high-resolution formats, including DSD (256) up to 384/32 resolution. It offers an HDMI (ARC) interface, advanced Bluetooth connectivity, and standard digital inputs with a USB-A interface. The digital outputs are now volume-controllable, while the analog outputs (RCA & XLR) have analog volume control. Inputs can be switched to signal activation, automatically powering on the PAS. The PAS 5.3 provides extensive connectivity options with balanced and unbalanced inputs and outputs.

The focus was on modernizing the app control for seamless management of music collections. The user-friendly interface makes it easy to explore and discover new music on various streaming platforms. The pre-installed selection of streaming services, including Spotify Connect, TIDAL Connect, QOBUZ, and HighResAudio, can be expanded in the future.

The AVM X-STREAM Engine® streams high-resolution formats, including DSD (256) up to 384/32 resolution. It offers an HDMI (ARC) interface, advanced Bluetooth connectivity, additional digital inputs, and a USB-A interface. The new digital outputs can be volume-controlled, while the analog outputs (RCA & XLR) have analog volume control.  The PAS 5.3  provide extensive connectivity options with balanced and unbalanced inputs and outputs.

The PAS 5.3 feature newly developed circuit concepts, resulting in a remarkable improvement in sound quality. The digital section has been completely redesigned with the selected ESS9028 PRO Double-Quad DAC, utilizing four DA converters per channel in parallel. This enhances the sound quality of all digital sources and ensures perfect reproduction of high-resolution formats.

Part Exchange Available

As you would expect from Fanthorpes hifi, we offer a generous part exchange against the AVM Evolution PAS 5.3 Streaming Preamplifier. If you have any hifi that you wish to use as part payment then either call us on 01482 223096 or email us at shop@fanthorpes.co.uk and we will give you a price to change. This is a fantastic and hassle-free way of making the AVM Evolution PAS 5.3 Streaming Preamplifier more affordable.

Finance Available

Fanthorpes hifi can also offer buy now pay later on the AVM Evolution PAS 5.3 Streaming Preamplifier, allowing you to spread or defer your payments over a year. If you are interested in taking advantage of our payment terms, email shop@fanthorpes.co.uk or call us on 01482 223096 and we will email an application form to you.

AVM PAS 5.3 Streaming Preamplifier specification:

• AVM X-STREAM Engine® for HiRes streaming including DSD, controllable via the RC X app
• Prepared for Spotify Connect, Qobuz, Tidal Connect, internet radio (expandable)
• ROON ready
• Bluetooth 4.2
• Airplay2
• HDMI (ARC) input
• USB A for external hard drives (NTFS & FAT)
• AVM RoomConnneXion multi-room function
• 2 digital inputs (SPDIF, optical)
• 5 analog inputs (1 XLR, 3 RCA, and PHONO)
• Phono input MM/MC, controllable with extensive customization via RC X App
• 2 digital outputs (SPDIF, optical), optionally adjustable volume
• 2 analog outputs (RCA & XLR), switchable between FIX Out and VARIABLE Out
• Volume control (fully analog)
• 1 analog Line Out RCA (fixed level)
• Home-Theatre loop (selectable in menu)
• Signal processing with selected Double-Quad DAC for max. 384/32 PCM (ESS 9028PRO) as well as DSD 256
• Sound control and parametric loudness with bypass function (controllable via RC X app)
• Dimmable graphic display with touchpoint sensor and proximity sensor
• Extensive menu functions (individual input naming, etc.)
• Compact design: 43cm width, 33cm depth, 12cm height
• Aluminum silver, brushed black, CELLINI chrome
